Used For Boats Launching Airbag With Marine Inflatable Rubber
Airbag

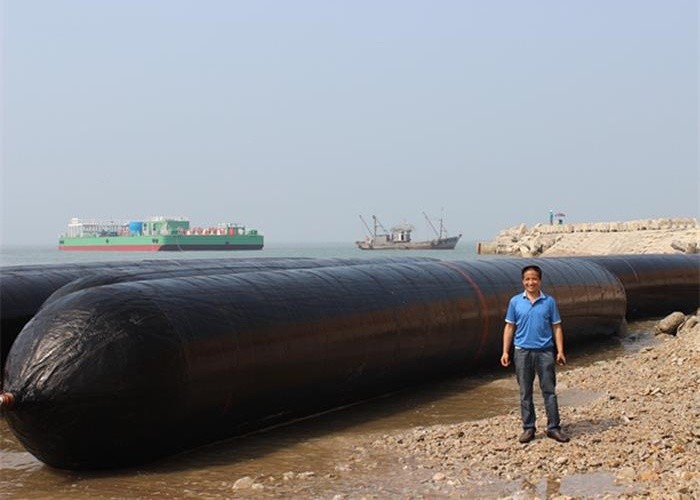

Florescence inflatable rubber airbag is a kind of innovative product with our
own intellectual property.It has been widely used in the ship
launching and landing,the caissons lifting movement, the removal of
other heavy objects, underwater installation work buoyancy aid and
other areas. Marine airbag applications are not affected by site
constraints, and don't need large-scale machinery and equipment,so
that to shorten the project cycle and save a lot of money. After 20
years of development practice,prove that it is safe,efficient,
green,and flexible.
Advantages of Florescence inflatable rubber airbag
Optimized structural layout
The principle for optimizing the structural layout is to determine
the size and orientation of the major stress in the working
process, and then adjust the angle of the cord yarn at each layer
to equalize the stressing onto each later more or less in order to
give a full play to the efficiency of the fortifying fiber. For
this purpose .we have established the strength model for the
inflating rubber airbag and also tested the compressive property.
We also studied the variation law of the size and orientation of
the major stress on the bag wall and found out the best cord yarn
layout. The new design has been proved very successful through
bursting test and in-service use.
Durable aging resistance and anti-wear characteristic
The marine airbag works in very harsh environment where it is
exposed to the sunlight, seawater, grits and pollutants. So the
surface of the airbag must be wear resistant, sea water and
chemical resistant and anti-aging. With its substrate made of
natural rubber and auxiliary materials, Florescence marine rubber airbag with the high carrying capacity is proved to
be of durable aging resistance and wearing quality.
Standard specifications of Florescence inflatable rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available
upon customer’s request
Technical parameters of Florescence inflatable rubber airbag:
Type | Diameter | Pressure | marine airbag can load |
Working height
| Static Pressure load | Dynamic pressure load
|
Plan airbag | 0.8m | 0.06mpa | 0.3m | 8 ton | 4 ton |
1m | 0.05mpa | 0.3m | 9 ton | 5 ton |
1.2m | 0.05mpa | 0.35m | 10 ton | 6 ton |
1.5m | 0.05mpa | 0.7m | 12 ton | 8 ton |
1.8m | 0.04mpa | 0.8m |
|
|
Slope airbag | 0.8m | 0.06mpa | 0.3m | 9.6 ton | 6 ton |
1m | 0.05mpa | 0.3m | 10.8 ton | 7.5 ton |
1.2m | 0.05mpa | 0.35m | 12 ton | 9 ton |
1.5m | 0.05mpa | 0.7m | 14.4ton | 12 ton |
1.8m | 0.04mpa | 0.8m | 18 ton | 15 to |
Intertwine airbag | 0.8m | 0.06mpa | 0.3m | 12 ton | 7.2 ton |
1m | 0.05mpa | 0.3m | 13.5 ton | 9 ton |
1.2m | 0.05mpa | 0.35m | 15 ton | 10.8 ton |
1.5m | 0.05mpa | 0.7m | 18 ton | 14.4 ton |
1.8m | 0.4mpa | 0.8m | 22.5 ton | 18 ton |
Q1: Are you factory or trading company?
A: Qingdao Florescence is the company and factory,located in Jimo
City,Qingdao,near to Qingdao port and Qingdao airport,which is
convenient for transportation.
Q2: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The
payment terms you could choose are T/T,L/C at sight,Western Union
and so on.
Q3: What about your warranty time?
A:Our warranty period is 24 months.During this time,any problems
about products from our factory,we solemn promise to change and
repair them for free;if problems from customers’ improper
operating,we could provide free guidance and repair materials
