Marine Inflatable Rubber Airbag Used For Ship Launching And Landing
Florescence rubber airbag application:
1. Hoisting and moving airbags: They can be widely used for moving
various large prefabricated reinforced-concrete products (such as
caisson, box culvert, and bridge), oil drilling equipment and
integrated building, etc.
2. Floating and filling airbags:The corresponding buoyancy can be
offered on the clients’ request for wreck salvage and underwater
installation operation. Filling and floating gasbags can be
flexibly used in the projects of wreck salvage, pontoon bridge
installation, dock building, underwater transmission pipeline
installation, etc. in many ways.

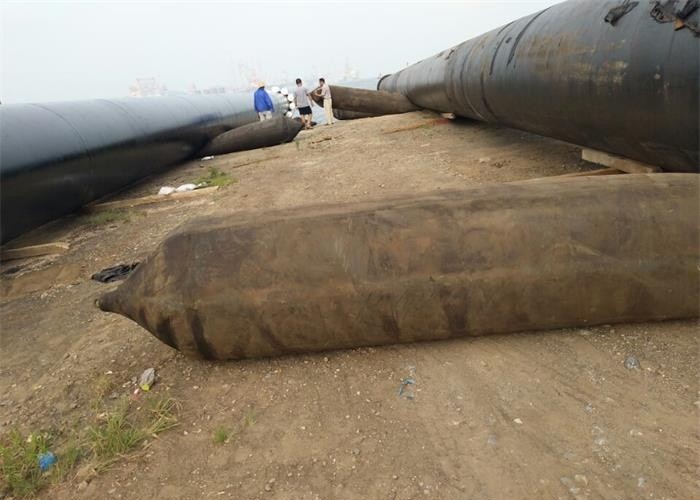

3. Ship landing and launching airbag: It is widely used for landing
and launching the large-size, medium-size and small size ships,
with the advantages of labor-saving, time-saving and
capital-saving.
Standard specifications of Florescence inflatable rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available
upon customer’s request
The structure of Florescence inflatable rubber airbag:
It consists of a bag body and an iron-end component. The bag body
is manufactured by vulcanizing the preliminary shaped airbag made
of base rubber and reinforced fiber material. The material of the
iron- end component is metal, and it is connected to the bag body
firmly.
The weight for 8 layers inflatable rubber airbag
Effective Length | Weight of an airbag(Theoretical value) |
| D=0.8m | D=1.0m | D=1.2m | D=1.5m | D=1.8m | D=2.0m |
| 5m | 158kg | 208kg | 256kg | 335kg | 423kg | 483kg |
| 6m | 189kg | 241kg | 299kg | 387kg | 485kg | 552kg |
| 7m | 213kg | 276kg | 340kg | 439kg | 546kg | 619kg |
| 8m | 241kg | 310kg | 380kg | 490kg | 608kg | 688kg |
| 9m | 270kg | 343kg | 422kg | 541kg | 669kg | 757kg |
| 10m | 298kg | 378kg | 463kg | 593kg | 731kg | 826kg |
| 11m | 325kg | 413kg | 503kg | 645kg | 793kg | 895kg |
| 12m | 353kg | 447kg | 545kg | 696kg | 855kg | 963kg |
| 13m | 380kg | 481kg | 585kg | 747kg | 917kg | 1032kg |
| 14m | 408kg | 516kg | 626kg | 799kg | 979kg | 1101kg |
| 15m | 437kg | 549kg | 667kg | 851kg | 1041kg | 1169kg |
| 16m | 464kg | 584kg | 708kg | 902kg | 1104kg | 1239kg |
| 17m | 492kg | 618kg | 749kg | 954kg | 1166kg | 1307kg |
| 18m | 520kg | 653kg | 791kg | 1006kg | 1228kg | 1376kg |
Design suitable airbags for customers
And we can recommend you suitable sizes, if you tell us the
following ship information.
For price quotes please answer the following questions:
* Type of vessel?
* LOA(length)of ship?
* Width of vessel?
* Vessel’s actual launched weight (gravity weight) without cargo?
* What is the vessel’s DWT?
* Type of ground ship is built on?(Dirt, concrete, etc.)
* Depth in meters of the water where the ship first enters the
water?
* What’s the angle degree of slipway? (land, not under water)
* Please provide the low/high tide schedule at site
* The working height ? (The block stand height under the vessel)
* Distance from bottom of propeller to the water level?
* Distance from back of vessel (in dry dock) to the water entry
point?
If possible , please provide photos of the launch area .
