Used As Protecting Equipment Fender Pneumatic Rubber Marine Fender
Florescence Pneumatic rubber fender (for ship use) uses
compressed-air as medium to absorb the energy from impact. The
sides of ships are softer when berthing, so the result of
collision-avoiding is achieved.

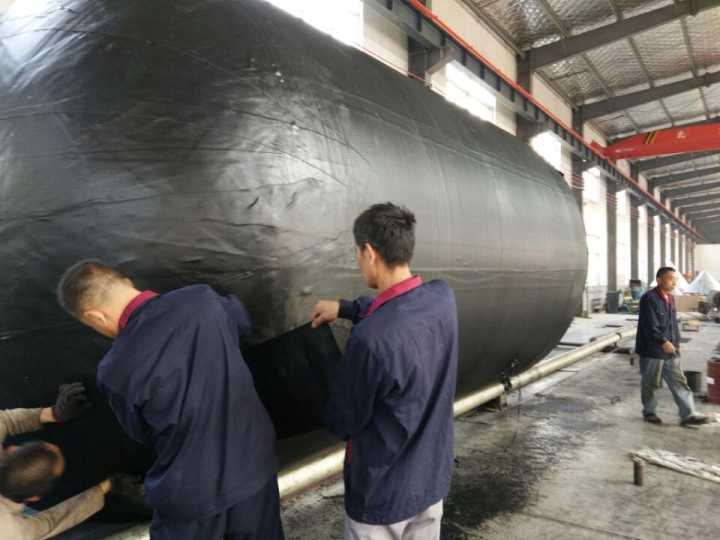

In order to produce the qualified and famous China Brand of
pneumatic fenders , Florescence RUBBER invested the advanced production and test equipments, and
invited the foreign experienced engineers of pneumatic fenders,
which ensure all Florescence pneumatic fenders are manufactured comply with ISO17357:2002.
Therefore, Florescence -RUBBER is the unique manufacturer of ISO17357 qualified Pneumatic
Fenders in China.
In order to protect your maritime values, Florescence -RUBBER strongly recommends the use of ISO certified Pneumatic
Fenders while performing the high quality needed for safe berthing
during ship to ship operations involving bunkering or discharging
of oil or gas, and ship to port operation
Storage of marine rubber fender
* When not using for a long time,wash the surface of the fender,dry
up and fill in sufficient right amount of compressed air to lay
them in a cool.dry and well-ventilated place.
* The storage place of pneumatic rubber fender should be far away
from hear source
* Try to keep fender away from acid,alkali,grease and organic
solvents
* When not applying the fenders,the pneumatic rubber fender can’t
be piled up and heavy items can’t be piled on the fender
Notes about pneumatic rubber fender
* Frequently check whether the fender body si damaged and whether
the pressure is normal,and the valve core must be replaced every
six moths
* The steel wire should wrap the rubber pipe,when trying steel wire
to pneumatic rubber fender in case the fender is stabbed
* The surface or subject next to the pneumatic rubber fender can’t
be hard and sharp-pointed in case the pneumatic rubber fender is
stabbed
* The accessories and jip’s nuts can’t be loose when testing the
internal pressure
* The rope net should be reliable,the steel wire used for hanging
metal parts and the hook link can’t be tied in disorder.
Technical performance of marine rubber fender
Specification DXL(m) | 0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) |
| Weight(kg) | Reaction force(KN) | GEA (KJ) | Weight (kg) | Reaction force(KN) | GEA (KJ) |
| 0.5X1.0 | 25 | 674 | 6 | 25 | 85 | 8 |
| 0.6X1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
| 0.7X1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
| 1.0X1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
| 1.0X2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
| 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
| Note:The weight is the fender body weight(without tires and
chain),with weight error of ±10% and counterforce error of ±10% |
FAQ
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord
fabric
Q2: Are you factory or trading company?
A: Qingdao Florescence Co.,Ltd is the company and factory,located in Jimo
City,Qingdao,near to Qingdao port and Qingdao airport,which is
convenient for transportation.
Q3: Can you do OEM?
A: Yes,we can do.As long as receive your request,we could produce
accordingly.
