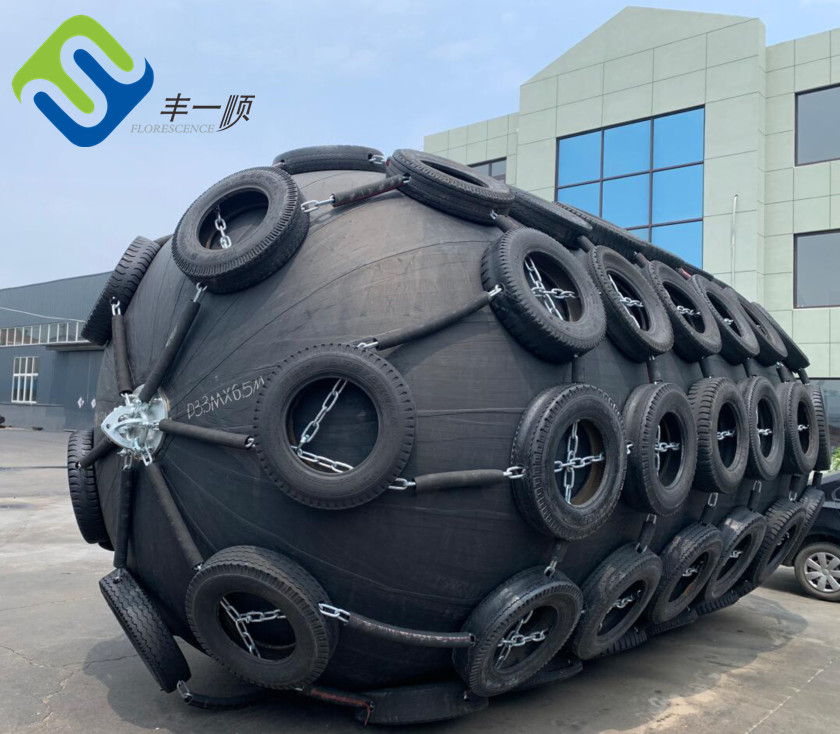

Black Color Of Dock Pneumatic Rubber Fender Marine Rubber Fender
FL Pneumatic rubber fender (for ship use) uses compressed-air as
medium to absorb the energy from impact. The sides of ships are
softer when berthing, so the result of collision-avoiding is
achieved.
Advantages of FL marine rubber fender:
* Absorb more energy,less reverse impact on the ships
* More flexible ,easy installation
* Long term service life
* Produce according to ISO17357:2002 completely
* Many different sizes and shape available
* Pass CCS,DNV,ABS
* Optional end fittings for the better suitable of applications
Notes about FL rubber fender
* Frequently check whether the fender body si damaged and whether
the pressure is normal,and the valve core must be replaced every
six moths
* The steel wire should wrap the rubber pipe,when trying steel wire
to pneumatic rubber fender in case the fender is stabbed
* The surface or subject next to the pneumatic rubber fender can’t
be hard and sharp-pointed in case the pneumatic rubber fender is
stabbed
* The accessories and jip’s nuts can’t be loose when testing the
internal pressure
* The rope net should be reliable,the steel wire used for hanging
metal parts and the hook link can’t be tied in disorder.
Technical performance of marine rubber fender
Specification DXL(m) | 0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) |
| Weight(kg) | Reaction force(KN) | GEA (KJ) | Weight (kg) | Reaction force(KN) | GEA (KJ) |
| 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
| Note:The weight is the fender body weight(without tires and
chain),with weight error of ±10% and counterforce error of ±10% |
FAQ
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord
fabric
Q2: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The
payment terms you could choose are T/T,L/C at sight,Western Union
and so on.
Q3: What’s certificates can your company provide?
A: We can provide CCS,ABS,DNV,LR,BV certificates.
Q4: What about your warranty time?
A: Our warranty period is 24 months.During this time,any problems
about products from our factory,we solemn promise to change and
repair them for free;if problems from customers’ improper
operating,we could provide free guidance and repair materials
