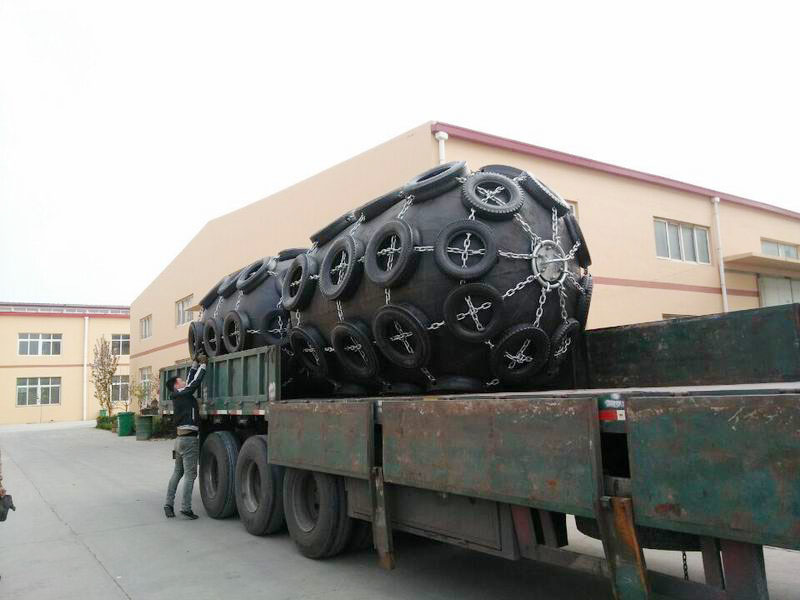

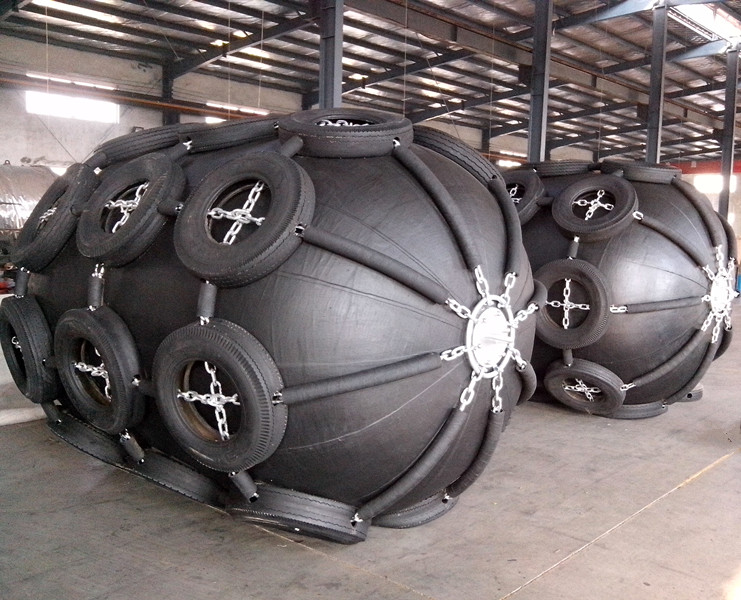

Chain And Tyre Type Protecting Fender Body Of Inflatable Jetty
Rubber Fender
In order to protect your maritime values, FL-RUBBER strongly
recommends the use of ISO certified Pneumatic Fenders while
performing the high quality needed for safe berthing during ship to
ship operations involving bunkering or discharging of oil or gas,
and ship to port operation
Advantages of FL floating pneumatic rubber fender:
* Absorb more energy,less reverse impact on the ships
* Not being bent out of shape under pressure
* Good air tightness,safety and reliability
* High shock absorption,low counterforce and enhance port ability
* Optional tire and chain,can provide chain with hot galvanizing or
stainless steel(304,312,316)
* Optional end fittings for the better suitable of applications
Technical performance of pneumatic rubber fender
Specification DXL(m) | 0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) |
| Weight(kg) | Reaction force(KN) | GEA (KJ) | Weight (kg) | Reaction force(KN) | GEA (KJ) |
| 0.5X1.0 | 25 | 674 | 6 | 25 | 85 | 8 |
| 0.6X1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
| 0.7X1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
| 1.0X1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
| 1.0X2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
| 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
| Note:The weight is the fender body weight(without tires and
chain),with weight error of ±10% and counterforce error of ±10% |
FAQ
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord
fabric
Q2: Are you factory or trading company?
A: Qingdao Florescence Rubber Industry Co.,Ltd is the company and
factory,located in Jimo City,Qingdao,near to Qingdao port and
Qingdao airport,which is convenient for transportation.
Q4: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The
payment terms you could choose are T/T,L/C at sight,Western Union
and so on.
Q6: What’s certificates can your company provide?
A: We can provide CCS,ABS,DNV,LR,BV certificates.
