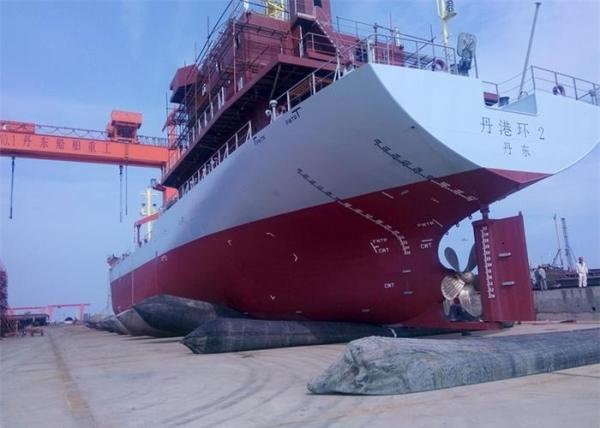

Ship Launching Marine Rubber Airbag For Launching Boats And Vessels
Advantages of Florescence marine rubber airbag
1. Big carrying capacity
2. New design of anti-bursting construction at the end
3. Optimized structural layout
4. Higher flexibility and damping capacity
The structure of Florescence rubber airbag:
It consists of a bag body and an iron-end component. The bag body
is manufactured by vulcanizing the preliminary shaped airbag made
of base rubber and reinforced fiber material. The material of the
iron- end component is metal, and it is connected to the bag body
firmly.
Standard specifications of Florescence inflatable rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available
upon customer’s request
Technical parameters of Florescence airbag:
| Type | Diameter | Pressure | marine airbag can load |
| Working hight | Static Pressure load | Dynamic pressure load |
| | |
Plan airbag | 0.8m | 0.06mpa | 0.3m | 8 ton | 4 ton |
| 1m | 0.05mpa | 0.3m | 9 ton | 5 ton |
| 1.2m | 0.05mpa | 0.35m | 10 ton | 6 ton |
| 1.5m | 0.05mpa | 0.7m | 12 ton | 8 ton |
| 1.8m | 0.04mpa | 0.8m | | |
Slope airbag | 0.8m | 0.06mpa | 0.3m | 9.6 ton | 6 ton |
| 1m | 0.05mpa | 0.3m | 10.8 ton | 7.5 ton |
| 1.2m | 0.05mpa | 0.35m | 12 ton | 9 ton |
| 1.5m | 0.05mpa | 0.7m | 14.4ton | 12 ton |
| 1.8m | 0.04mpa | 0.8m | 18 ton | 15 to |
| Intertwine airbag | 0.8m | 0.06mpa | 0.3m | 12 ton | 7.2 ton |
| 1m | 0.05mpa | 0.3m | 13.5 ton | 9 ton |
| 1.2m | 0.05mpa | 0.35m | 15 ton | 10.8 ton |
| 1.5m | 0.05mpa | 0.7m | 18 ton | 14.4 ton |
| 1.8m | 0.4mpa | 0.8m | 22.5 ton | 18 ton |
Q1: Are you factory or trading company?
A: Qingdao Florescence Co.,Ltd is the company and factory,located
in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which
is convenient for transportation.
Q2: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The
payment terms you could choose are T/T,L/C at sight,Western Union
and so on.
Q3: What’s certificates can your company provide?
A: We can provide CCS,ABS,DNV,LR,BV certificates.
Q4: What about your warranty time?
A: Our warranty period is 24 months.During this time,any problems
about products from our factory,we solemn promise to change and
repair them for free;if problems from customers’ improper
operating,we could provide free guidance and repair materials
