Brand Name : | Florescence |
Model Number : | Florescence rubber airbag(19) |
Certification : | CCS,ABS,DNV,LR,ISO9001 |
Price : | Negotiable |
Payment Terms : | Western Union, L/C, T/T |
Supply Ability : | 30PCS/Month |
Delivery Time : | 5-10 days |

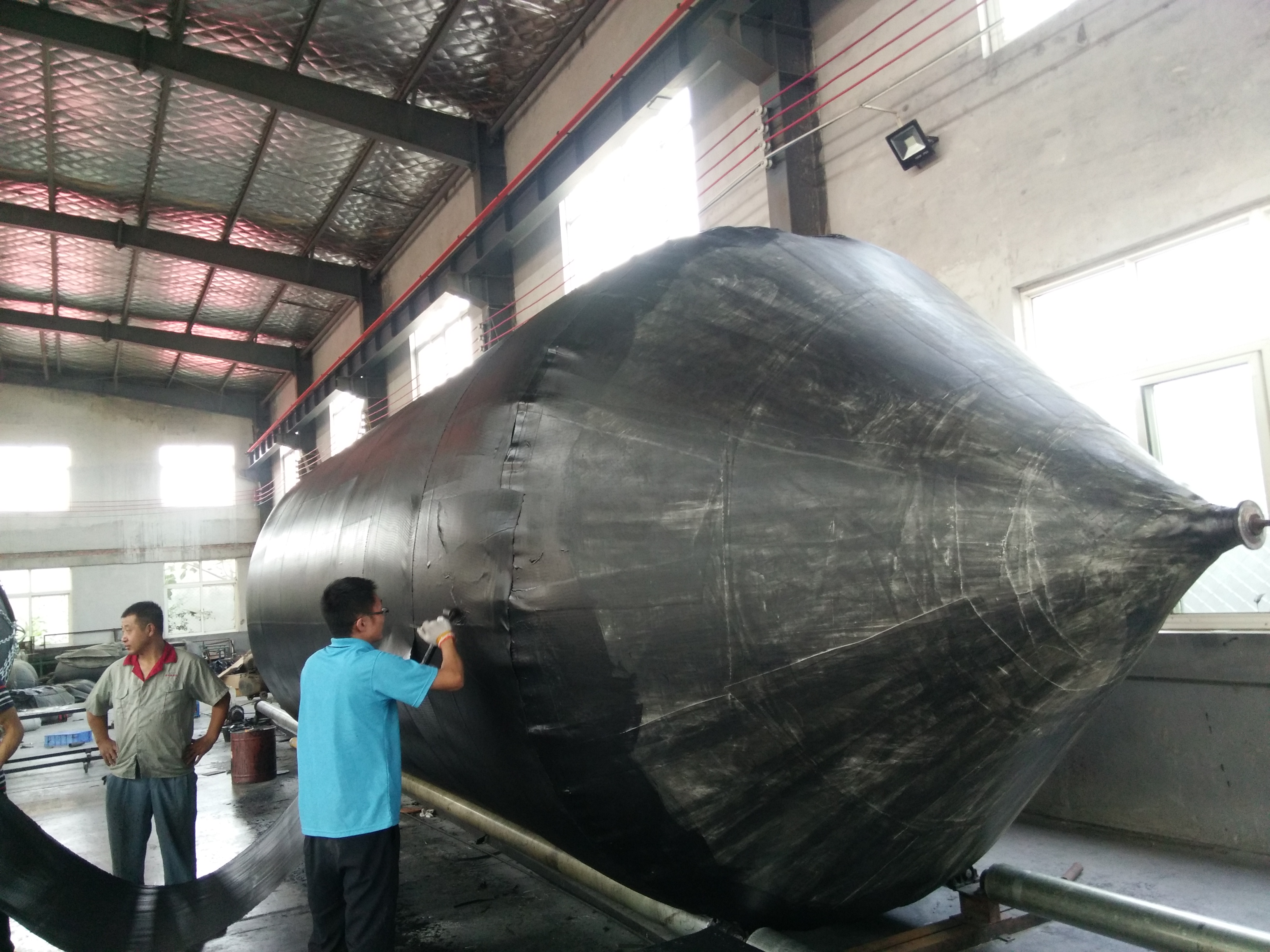

Marine Rubber Airbag Used For Ship Launching , Landing And Salvage
Florescence inflatable rubber airbag is a kind of innovative
product with our own intellectual property.It has been widely used
in the ship launching and landing,the caissons lifting movement,
the removal of other heavy objects, underwater installation work
buoyancy aid and other areas. Marine airbag applications are not
affected by site constraints, and don't need large-scale machinery
and equipment,so that to shorten the project cycle and save a lot
of money. After 20 years of development practice,prove that it is
safe,efficient, green,and flexible.
Ship launching or upgrading relying on Florescence marine airbag is
a innovative technology having utmost developmental prospect in
shipbuilding.Ship launching airbags overcomes the disadvantage of
fixed launching track by which the productive abilities of
shipbuilding and ship repair were limited in the small and medium
sized shipyards. Now it has become a flexible launching technology
full of mobility, having advantages in saving effort,saving
time,saving work load, saving investment,flexibility,safety,
reliability, outstanding comprehensive economy benefit, flexible,
safe, reliable, and outstanding benefit, etc. The launching
technology of apply Florescence marine airbag to the launching and
landing of ships overcomes the restrictions of traditional slide
board technology which is commonly used in building small or medium
size ships.
Advantages of Florescence marine rubber airbag
1. New design of anti-bursting construction at the end
2. High capacity against compression and twisting
3. Higher flexibility and damping capacity
Standard specifications of Florescence marine rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Total Length (TL): From 7m to28m.
3> Other specification of ship launching airbags also available
upon customer’s request
Working pressure of Florescence marine rubber airbag:
Diameter | Layer | Work pressure | Diameter | Layer | Work pressure |
D=0.8M | 3 | 0.13 Mpa | D=1.5M | 3 | 0.07 Mpa |
4 | 0.17 Mpa | 4 | 0.09 Mpa | ||
5 | 0.21 Mpa | 5 | 0.11 Mpa | ||
6 | 0.25 Mpa | 6 | 0.13 Mpa | ||
7 | 0.30 Mpa | 7 | 0.15 Mpa | ||
8 | 0.33 Mpa | 8 | 0.18 Mpa | ||
D=1.0M | 3 | 0.10 Mpa | D=1.8M | 3 | 0.06 Mpa |
4 | 0.13 Mpa | 4 | 0.08 Mpa | ||
5 | 0.17 Mpa | 5 | 0.09 Mpa | ||
6 | 0.20 Mpa | 6 | 0.11 Mpa | ||
7 | 0.25 Mpa | 7 | 0.13 Mpa | ||
8 | 0.28 Mpa | 8 | 0.15 Mpa | ||
D=1.2M | 3 | 0.09 Mpa | D=2.0M | 3 | 0.05 Mpa |
4 | 0.11 Mpa | 4 | 0.07 Mpa | ||
5 | 0.14 Mpa | 5 | 0.08 Mpa | ||
6 | 0.17 Mpa | 6 | 0.10 Mpa | ||
7 | 0.20 Mpa | 7 | 0.12 Mpa | ||
8 | 0.23 Mpa | 8 | 0.14 Mpa |
Our service
Pre-sale service:Every product will be inspected before shipment,guarantee the
quality
On-sale service:Choose suitable package and transportation,gurantee the goods
reach to customers safely,save freight for customers
After-sale service:One-to-one VIP service
We solemn promise:
1) Contact with customers statedly
2) Guide the installation and using of products
3) Provide maintenance manual of related products
4) Provide mending material for products
![]() |
