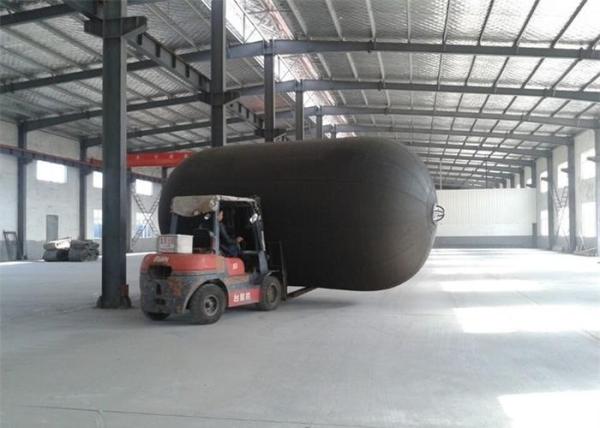

    Pneumatic Marine Rubber Fender For Pier Dock Protection

    Ask Lasest Price
    Brand Name : Florescence RUBBER
    Model Number : Florescence rubber fender(103)
    Certification : CCS,ABS,DNV,LR,ISO9001
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 100 pcs/month
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    Pneumatic Marine Rubber Fender For Pier Dock Protection

    Used For Pier And Dock Protection With Pneumatic Marine Rubber Fender

    Advantages of marine rubber fender:
    * Absorb more energy,less reverse impact on the ships
    * More flexible ,easy installation
    * Long term service life
    * Not being bent out of shape under pressure
    * Good air tightness,safety and reliability
    * High shock absorption,low counterforce and enhance port ability
    * Produce according to ISO17357:2002 completely
    * Many different sizes and shape available
    * Pass CCS,DNV,ABS
    * Durable, practical and economical
    * Good quality have been checked by many buyers
    * Optional tire and chain,can provide chain with hot galvanizing or stainless steel(304,312,316)
    * Optional end fittings for the better suitable of applications

    Technical performance of marine rubber fender

    Specification
    DXL(m)

    0.05Mpa(Initial pressure 0.05Mpa)(Initial pressure 0.08Mpa)
    Weight(kg)Reaction force(KN)

    GEA
    (KJ)

    Weight
    (kg)

    Reaction force(KN)

    GEA
    (KJ)

    0.5X1.025674625858
    0.6X1.032748329811
    0.7X1.550137175018024
    1.0X1.580182328023945
    1.0X2.01002574512533863
    1.2X2.01202976316539088
    1.35X2.5165427102226561142
    1.5X3.0315579153370761214
    1.7X3.0405639191436840287
    2.0X3.55908753086321150430
    2.5X4.01050138166311101815925
    2.5X5.513332019943141026531317
    3.0X5.0188020001050215527091571
    3.0X6.0216024881312247032921888
    3.3X4.5202018841175230024761640
    3.3X6.0230027831675260036522338
    3.3X6.5270030151814308039612532
    3.3X10.6440352573067502069074281
    4.5X9.0655457474752747075516633
    4.5X128739798464739960104909037
    Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10%


    Storage of rubber fender

    * When not using for a long time,wash the surface of the fender,dry up and fill in sufficient right amount of compressed air to lay them in a cool.dry and well-ventilated place.

    * The storage place of pneumatic rubber fender should be far away from hear source

    * Try to keep fender away from acid,alkali,grease and organic solvents

    * When not applying the fenders,the pneumatic rubber fender can’t be piled up and heavy items can’t be piled on the fender

    Notes about marine rubber fender

    * Frequently check whether the fender body si damaged and whether the pressure is normal,and the valve core must be replaced every six moths

    * The steel wire should wrap the rubber pipe,when trying steel wire to pneumatic rubber fender in case the fender is stabbed

    * The surface or subject next to the pneumatic rubber fender can’t be hard and sharp-pointed in case the pneumatic rubber fender is stabbed

    * The accessories and jip’s nuts can’t be loose when testing the internal pressure

    * The rope net should be reliable,the steel wire used for hanging metal parts and the hook link can’t be tied in disorder.
