Natural Rubber Salvage Air - Bag / Salvage Pontoon / Marine Salvage
Airbags
Advantages of Florescence marine salvage airbags
1. High capacity against compression and twisting
2. Optimized structural layout
3. Higher flexibility and damping capacity

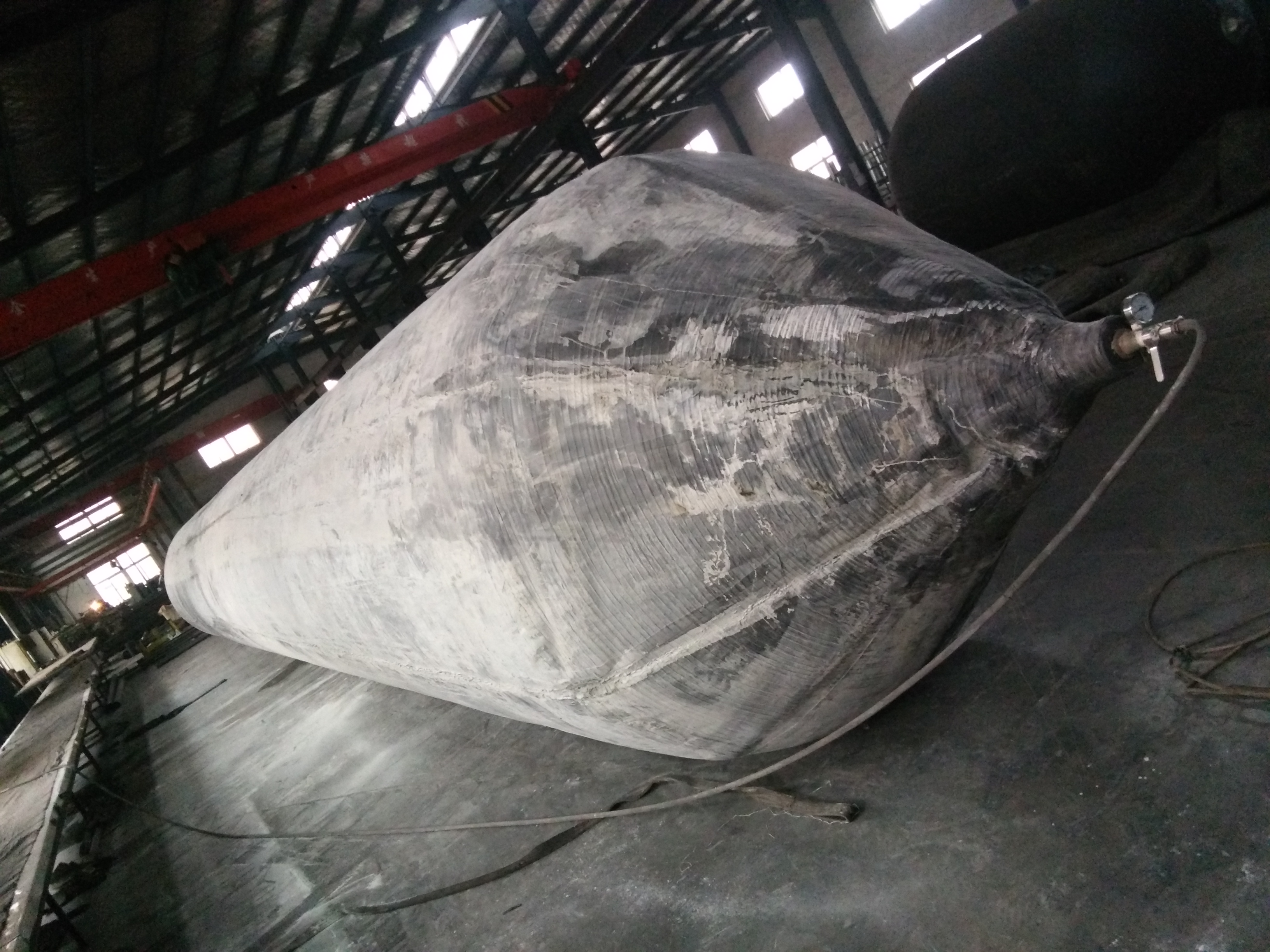

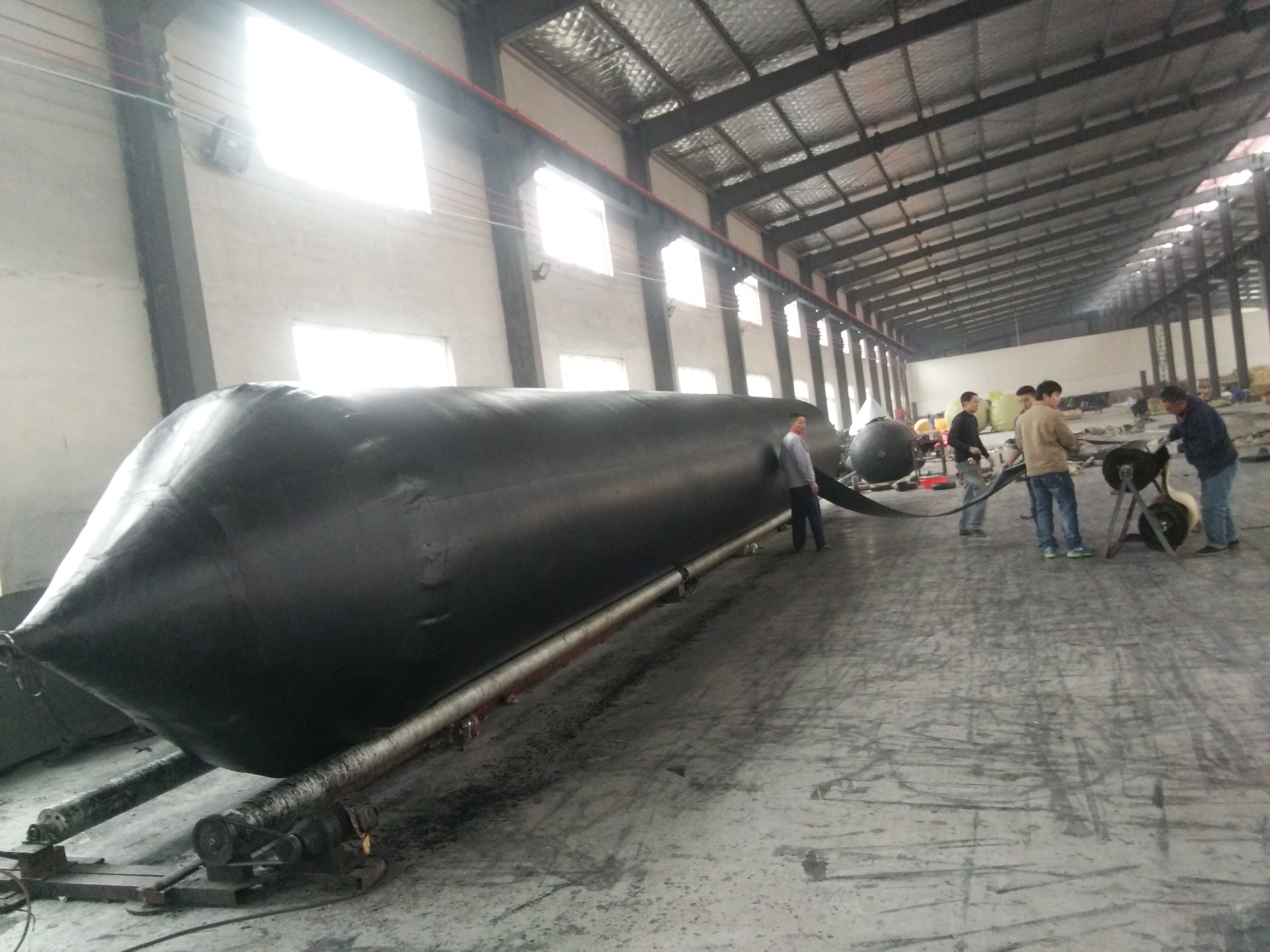

The structure of Florescence rubber airbag:
It consists of a bag body and an iron-end component. The bag body
is manufactured by vulcanizing the preliminary shaped airbag made
of base rubber and reinforced fiber material. The material of the
iron- end component is metal, and it is connected to the bag body
firmly.
Working pressure of Florescence marine salvage airbags:
| Diameter | Layer | Work pressure | Diameter | Layer | Work pressure |
| D=0.8M | 3 | 0.13 Mpa | D=1.5M | 3 | 0.07 Mpa |
| 4 | 0.17 Mpa | | 4 | 0.09 Mpa |
| 5 | 0.21 Mpa | | 5 | 0.11 Mpa |
| 6 | 0.25 Mpa | | 6 | 0.13 Mpa |
| 7 | 0.30 Mpa | | 7 | 0.15 Mpa |
| 8 | 0.33 Mpa | | 8 | 0.18 Mpa |
| D=1.0M | 3 | 0.10 Mpa | D=1.8M | 3 | 0.06 Mpa |
| 4 | 0.13 Mpa | | 4 | 0.08 Mpa |
| 5 | 0.17 Mpa | | 5 | 0.09 Mpa |
| 6 | 0.20 Mpa | | 6 | 0.11 Mpa |
| 7 | 0.25 Mpa | | 7 | 0.13 Mpa |
| 8 | 0.28 Mpa | | 8 | 0.15 Mpa |
| D=1.2M | 3 | 0.09 Mpa | D=2.0M | 3 | 0.05 Mpa |
| 4 | 0.11 Mpa | | 4 | 0.07 Mpa |
| 5 | 0.14 Mpa | | 5 | 0.08 Mpa |
| 6 | 0.17 Mpa | | 6 | 0.10 Mpa |
| 7 | 0.20 Mpa | | 7 | 0.12 Mpa |
| 8 | 0.23 Mpa | | 8 | 0.14 Mpa |
Quality control
The product is up to the quality requirements of ISO14409:2011 “Air
bags for the up-to-slipway and launching of the ship".
Should quality problem happen within 24 months, it is guaranteed to
change or refund on the condition that the transportation, storage
and working conditions are up to the regulations
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord
fabric
Q2: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The
payment terms you could choose are T/T,L/C at sight,Western Union
and so on.
Q3: What’s certificates can your company provide?
A:We can provide CCS,ABS,DNV,LR,BV certificates.
