Oil Containment Boom / Solid Float Oil Boom Used For Protecting
Water Environment

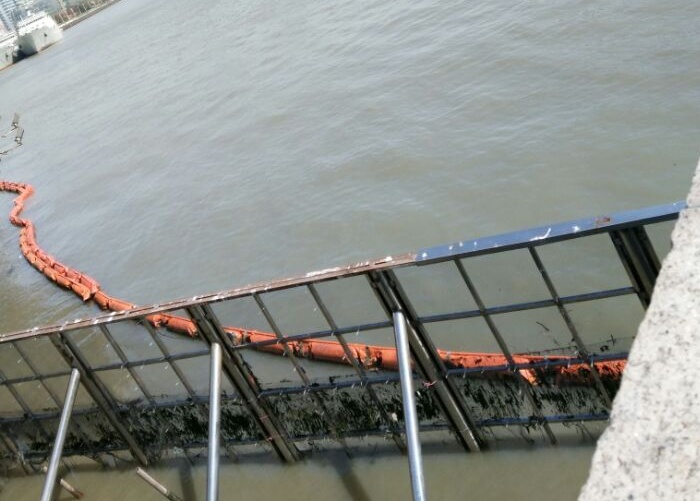

The solid float PVC boom is an economical,universal boom for
intercepting oil spills and other floats on waters.It is suitable
for the permanent,stationary deployment on waters.Thanks to its
fast deployment and easy operation,it is widely used on
rivers,harbors,lakes,offshore oil platforms and other waters.
The solid float rubber boom is the important equipment used for
preventing spilled oil on waters from diffusion and transfer.It is
widely used for long-term deployment on waters such as open
seas,bays,harbors,rivers,oil platform,oil-refining plants,oil
piers,oil storage,sea bathing area,etc. And also for emergent use
in oil spilling accidents.
Features of solid float oil boom
* Fabricated with special rubber cloth to form the main body,thus
high intensity,long endurance,oil-resistance,erosion-resistance are
ensured.
* Covered with fire-proof rubber cap which can meet the requirment
of fire-resistance.
* Special designed solid floats with higher buoyancy,boom body
uniformly exerted by forces,with higher overall strength and good
vertical stability.
* Make choice among zipper counterweight,cast iron counterweight
and built-in counterweight according to demands.
* Noctilucent or colored outer rubber cover would be decorated
according to customer’s requirement.
Technical data of oil containment boom
Model | WGJ 600 | WGJ 800 | WGJ 1000 | WGJ 1200 | WGJ 1400 | WGJ 1600 | WGJ 1800 |
Overall height (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 |
Freeboard(mm)
| 210 | 280 | 340 | 400 | 460 | 520 | 590 |
Draft(mm) | 280 | 360 | 480 | 600 | 700 | 810 | 900 |
Max working tensile strength (KN) | 50 | 80 | 100 | 110 | 120 | 140 | 160 |
Max wave Height to withstand(m)
| 1.5 | 2 | 2 | 2.5 | 3 | 3 | 3.5 |
Max wind speed to withstand(m/s) | 10 | 15 | 15 | 20 | 20 | 20 | 25 |
Max current speed to withstand(KN) | 1.5 | 2 | 2.5 | 3 | 3 | 3-4 | 3-4 |
Structure of solid float PVC boom
1. Boom's membrane is PVC double-face coated reinforced fabric.
2. A top ridge rope, middle reinforced belts and a bottom balance
chain on boom sections bear the longitudinal load, and form
concaves both at the skirt in water and at the flexible sections
above water when boom is in a current.
3. There are flexible sections between cross beam like floaters.
4. Easily connect boom sections, which are 20m long.
5. Every section has anchor seats.
Performance of solid float PVC boom
1. High strength and long service life. Because of reasonable force
distribution on the boom.
2. Good oil stagnant ability with due to nice posture and high
stability in water.
3. Good wave-response. Easy deployment.
4. Easy to clean and maintain.
