    Rubber Marine Salvage Airbags Inflatable Cylindrical

    Ask Lasest Price
    Brand Name : FLORESCENCE
    Model Number : NC2-1
    Certification : CCS,ABS,BV,LR,CCS BV GL
    Price : USD1000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    Rubber Marine Salvage Airbags Inflatable Cylindrical

    Inflatable Rubber Cylindrical Marine Salvage Airbags

    Introduction of Ship Rubber Airbag

    Florescence ship rubber airbags can be used to launch and land a ship up to 100,000DWT. Comparing to the traditional slipway launching method, the ship rubber airbags are much convenient, because ship airbag can launch a ship at any seaside, so there's no need to worry about the construction of launching facilities; besides, the marine airbag need little maintenance and can be used repeatedly. Need no more than air compressors, winches and ropes.

    image001_副本

    image003_副本


    To recommend you best rubber airbag size

    Before to provide suitable airbag size and quantity for your ship, please provide below information:

    1. Ship length,width and weight.

    2. Type of ground ship is built on? (Dirt, concrete, etc.)

    3. Type of ship?

    4. Depth in meters of the water where the ship first enters the water?

    5. What's the angle degree of slipway? (Land, not under water)

    6. Please provide the low/high tide schedule at site.

    7. The working height? (The block stand height under the ship)

    8. Distance from bottom of propeller to the water level?

    9. Distance from back of ship (in dry dock) to the water entry point?

    * If possible, please provide photos of the launch area.

    image004_副本

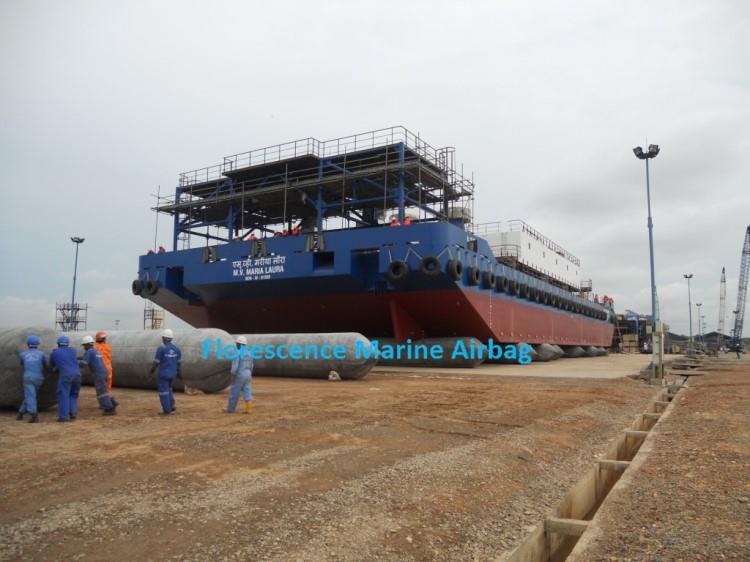

    Ship Launching Procedure

    Procedure of Launch a ship by rubber airbags

    1. Pre launch preparation work for shipyard

    Slipway Enhancement

    Water survey

    Ground anchor

    Seal thruster holes if there are.

    2. Basic equipment needed for ship launching

    Rigging equipment:Winch,Pulley,Swivel,Lug,Shackle,Wire sling,Ground Anchor

    Inflate equipment: Air Compressor, Inflating Pipe

    Airbag moving equipment: Forklift, mobile crane

    3. Crew preparation

    4. Rigging Arrangements

    5. Lifting the blocks

    6. Move vessel forward

    7. Vessel Launching

    image006_副本
