Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved

Ask Lasest Price
Brand Name :	Florescence
Model Number :	Florescence Rubber Fender
Certification :	BV, CCS, ABS, LR etc.
Price :	200
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200 pcs per day
Delivery Time :	within 10 days

Add to Cart

Product Details
Company Profile

Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved

W Rubber Fender

W fender

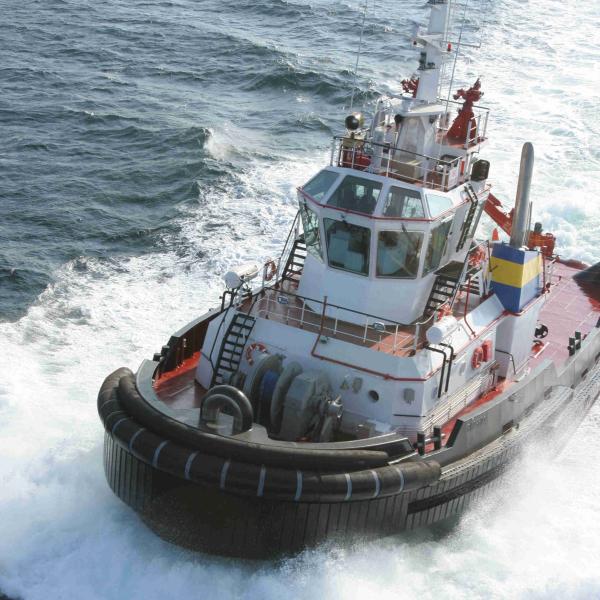

W-Fenders are specially designed as vertical fenders for the bow
and stern of tugs. It’s unique profile is able to accomodate the
tight radius and closely follow the ship’s contours. The wider
external face present a continue and uniform surfaces thus
providing an unbroken protective surfaces at the bow and stern of
tugboats.

The special shape of the W-Fenders offer savings in weight and
installation advantages - reduce both the initial purchase and
installation cost.

Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved

Type	A	B	C	D	E	F	K	LMax
W32-20	320	200	280	180	100	67	50	3000
W40-25	400	250	350	220	110	75	55	3000
W48-30	480	300	420	270	145	90	65	3000
W50-45	500	450	420	270	145	100	75	3000

Dimensional Tolerance Cross Section : > 100mm : ± 4%, or <
100mm : ISO3302-1, Class E3 Length : ± 20mm

W Type rubber fender is one of the most effective bumpers for protecting tugboats by means of absorbing excessive bumps and shocks.It is generally fastened to the stern and bow of boats in conjunction withaped profile with grooves on the top of fenders for extra grip and low pressure while pushing.Its special structure makes the fender much easier to install using guide rods whether at large or small radius.
“Florescence” W Type rubber fenders are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard, our products have exported to all over the world.

Extruded Fender

Extruded Fender is able to be delivered with fixing points, i.e.
holes drilled into the fender, sloping ends, fixing plates, bolts
and accessories. Extruded lengths vary dependant on handling and
transport criteria. Extruded fenders are normally used as side
fendering on tugs, supply vessels and pilot boats.

Typical Mounting Details For Ships

Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved

Feature

1.Used for ship and tug boat.

2.Large contact area and low surface.

Note

1.Fender length is subject to customer's requirement.

2.Fender in other specifications are available upon request.

Note

1.Fender length is subject to customer's requirement.

2.Fender in other specifications are available upon request.
