Ship Launching Lifting Heavy Duty Air Bags Marine Rubber Airbag
Introduction of floating rubber airbag
* Ship launching airbags are to be constructed of an out rubber
layer, multi layer heavy-duty synthetic-tire-cord layers, and an
inner rubber layer vulcanized firmly. Ship launching airbags are
cylindrical balloon body, with two conical head and end mouth. Air
tightness swivel and air inlet kits are screwed with end mouth.
* Synthetic-tire-cord layer is reinforcement layer of the ship
launching airbags which are made of rubber coated
synthetic-tire-cord fabrics. Many synthetic-tire cord layers are
twined at ideal angles by unique and patented “Holistic Wrapping
Technology“. To hold the internal pressure and to distribute the
stress evenly. The warp is over 95 cords per 100 mm in width. The
breaking strength is more than 310 N per cords.
* The outer rubber layer covers the outside of ship launching
airbags. To protects the cord layers from abrasion and other
external forces. This compound has sufficient tensile and tear
strength to withstand any weather condition and hard usage.
* Our properties requirements of outer and inner rubber material
comply with ISO 14409.
Product name: | Rubber airbag |
Diameter: | 0.6-2.8m |
Length: | 5-24m |
Layer: | 3-10 layers |
HS CODE: | 40169500 |
OEM | Accepted |
Features of our Marine Rubber Airbag:
Fully compliant with ISO 14409 standard, manufacture with mould,
difference with traditional hand-make product.
High bearing capacity
High resistance to knead ability
The new structure design of accounts attné'end
Optimization of structural layout
Durable anti-aging abilities and wear characteristics
Higher flexibility and shock absorption ability
The cord laryers we produced are using polyamide fibre, 2 ply which
can extend the airbags' life.
Application Of Ship launching Airbags
1.Hoist and handling airbags:
They can be widely used for handling the various large
prefabricated reinforced-concrete products( such as caisson, box
culvert, bridge), oil drilling equipment and integrated building,
etc.
2. Floating and filling airbags:
The corresponding buoyancy can be offered on the client’s request
during wreck salvage and underwater installation operation. Filling
and floating gasbags can be flexibly combined for wreck salvage,
pontoon bridge installation, dock, above water transmission
pipeline, etc. in many ways such as cabin occupation , etc.
3. Water supply and drain airbag for ship:
It is widely used for water supply and drain engineering for
large-size, medium-size and small –size ships, with labour-saving,
time-saving and physical force -saving.
4. Mandrel airbag:
It can substitute for the wooden or steel mandrel used for pouring
hollow large reinforced concrete structure.
5. Container airbag:
It can be used as the gas or liquid storage and transport
container.
Technology of Best price and service ship launching airbag:overall
winding. Marine airbags overall winding structure uses cross whole intertwine technology, the
overall structure is more reasonable, texture clear, no juncture,
high loads, more safety than lap technology (roller), more bearing
capacity.
Application

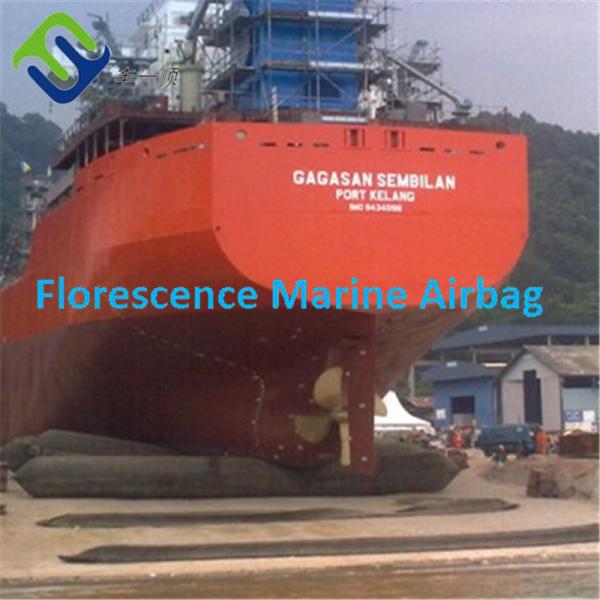

1.Rubber airbag for ship upgranding, conversion or new/repair
launching(for ship launching or landing)
2.Rubber airbag for hoisting and transporting heavy goods.
3.Marine rubber airbag for salvaging sunken ship or heavy immersed
steel structure.
4.Pneumatic rubber airbag for architecture engineering.
5.Container for storing and transporting gas,corrosive chemical
liquid and pure water.
6.Rubber airbag for construction and floating of bridge or
pipeline.
